Product Dimensions 42.56"h x 36"w x 19.69"d

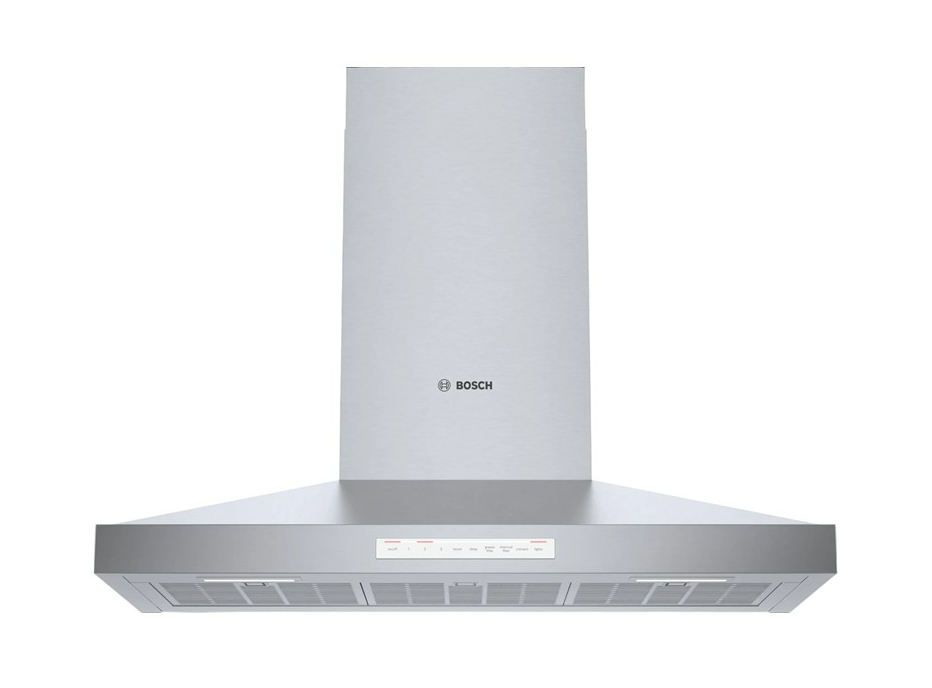

Wall mounted chimney hoods add style and sophistication to the kitchen and give you greater freedom in your kitchen planning. Remotely monitor and control your chimney hood with the Home Connect™ app.Read More
Additional Savings Available
Home Connect allows for remote monitoring and control of lights and fan speed, notification to clean the grease filter via Home Connect app, works with smart home devices and services like Amazon Alexa.
Dishwasher safe mesh filters makes cleaning and maintenance easy.
Converts to Recirculation Mode with Accessory Kit (Separate Purchase Required)
When the vent hood is installed in recirculation mode, the air is picked up and passes through multiple filters including the charcoal filter that absorbs odors. This freshened air is then pushed back into the kitchen. Over time, activated charcoal particles saturate and stop blocking off odors leaving your kitchen with strong smells.
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Trim Color | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Convertible (Both) |
| Ventilation Direction | Vertical |
| Vent Location | Top |
| Grease Filter Type | Aluminum Mesh |
| Duct Size (in.) | 8" Round |
| Bulb Type | Halogen |
| Sones Rating | 2 - 8.5 |
| Noise Level (Sones) | Standard - (High) |
| Maximum CFM | 600 |
| Range Hood Features | App Capable, Light, Removable Grease Filter, Remote Control, Dishwasher Safe Filter |
| Smart Compatible | Yes |
| Filter Indicator Light | Yes |
| Fan Speed Options | 4 |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 36 |
| Width (in.) | 36 |
| Height (in.) | 42.56 |
| Depth (in.) | 19.69 |
| Height Above Cooktop | 30 - 36 |
| Shipping Width (in.) | 40 |
| Shipping Depth (in.) | 17.75 |
| Shipping Height (in.) | 26.25 |
| Product Weight (lbs.) | 53 |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Collection | 500 Series |
| Series | 500 Series |
| Manufacturer Warranty | 1 Year Limited Parts & Labor |
| Voltage | 120 |
| Frequency | 60 |
| Positioning | Stationary |
Additional Information | |
General | |
| Venting | Exhaust / Recirculation (Accessory available separately) |
| Material | Stainless Steel |
| Grease Filter Material | Washable Aluminum |
| Filter Type | Cassette with Aluminum Frame |
| Type of Control | Button, Touch Control, Via app |
| Clean Filter Reminders | Yes |
Light | |
| Light Type | Halogen |
| Number of Lights | 2 |
Connectivity | |
| Home Connect™ | Yes |
| Home Connect Features | Remote Monitoring and Control |
